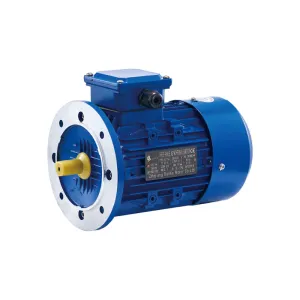

Explosion Proof Three Phase Asynchronous Motor: A Comprehensive Guide

Introduction
In industrial environments where flammable gases, vapors, or dust are present, safety is paramount. One critical component in such hazardous locations is the Explosion Proof Three Phase Asynchronous Motor. These motors are specifically designed to operate safely in explosive atmospheres by preventing ignition sources from escaping the motor enclosure. This article explores the working principles, design features, applications, and advantages of these motors in detail.


1. What is an Explosion Proof Three Phase Asynchronous Motor?
An Explosion Proof Three Phase Asynchronous Motor is a robust Electric Motor engineered to operate in hazardous environments where explosive substances may be present. Unlike standard motors, these units are constructed with reinforced enclosures that contain any internal explosions, preventing them from igniting the surrounding atmosphere.

Key Characteristics:
- Three-Phase Power Supply: Operates on a three-phase AC supply, providing high efficiency and balanced power distribution.
- Asynchronous Operation: Uses electromagnetic induction to generate torque, eliminating the need for brushes or commutators.
- Explosion-Proof Design: Complies with international safety standards (e.g., ATEX, IECEx, NEC) to ensure safe operation in hazardous areas.


2. Working Principle of Three Phase Asynchronous Motors
The Three-Phase Asynchronous Motor (also called an induction motor) operates based on Faraday’s law of electromagnetic induction. Here’s a simplified breakdown:

1. Stator Windings: The motor’s stator contains three-phase windings that produce a rotating magnetic field when energized.
2. Rotor Induction: The rotor, typically a squirrel-cage design, is not electrically connected. Instead, it induces currents due to the stator’s rotating field, creating torque.
3. Slip: The rotor rotates slightly slower than the stator’s magnetic field (slip), which is essential for torque generation.

In an explosion-proof motor, this operation occurs within a sealed enclosure that withstands internal explosions without allowing flames or hot gases to escape.


3. Design Features of Explosion Proof Motors
To meet safety standards, explosion-proof three-phase asynchronous motors incorporate several specialized design elements:

A. Robust Enclosure
- Made of heavy-duty materials (e.g., cast iron or aluminum) to withstand high-pressure explosions.
- Flame paths are designed to cool escaping gases below ignition temperatures.

B. Enhanced Cooling Systems
- TEFC (Totally Enclosed Fan Cooled): Uses an external fan to cool the motor without exposing internal components.
- TENV (Totally Enclosed Non-Ventilated): Relies on natural convection for cooling in highly hazardous areas.

C. Specialized Sealing
- Gaskets and threaded joints prevent flammable substances from entering the motor.
- Cable entries use explosion-proof seals to maintain integrity.

D. Corrosion and Chemical Resistance
- Coatings and materials are selected to resist corrosive environments (e.g., offshore oil rigs, chemical plants).


4. Applications of Explosion Proof Three Phase Asynchronous Motors
These motors are indispensable in industries where explosive atmospheres exist:

1. Oil & Gas Industry
  - Drilling rigs, refineries, and pipelines handling flammable hydrocarbons.

2. Chemical & Pharmaceutical Plants
  - Mixing, pumping, and processing volatile chemicals.

3. Mining Operations
  - Coal mines with combustible dust and methane gas.

4. Grain Handling & Storage
  - Flour mills and silos where dust explosions are a risk.

5. Paint & Solvent Manufacturing
  - Environments with flammable vapors.


5. Advantages of Explosion Proof Three Phase Asynchronous Motors

A. Safety Compliance
- Certified for use in Zone 1, Zone 2 (gas) and Zone 21, Zone 22 (dust) hazardous areas.

B. High Efficiency & Reliability
- Three-phase power ensures smooth operation with minimal energy loss.
- Asynchronous design reduces maintenance needs.

C. Durability in Harsh Conditions
- Resistant to moisture, dust, and extreme temperatures.

D. Long Service Life
- Robust construction minimizes wear and tear.


6. Standards and Certifications
Explosion-proof motors must adhere to strict regulations:
- ATEX (EU): Directive 2014/34/EU for explosive atmospheres.
- IECEx (International): Global certification for hazardous area equipment.
- NEC (US): NFPA 70, Class I (gases), Class II (dust), and Class III (fibers).


7. Maintenance and Safety Considerations
- Regular Inspections: Check seals, enclosures, and cooling systems.
- Proper Installation: Ensure correct wiring and grounding to prevent sparks.
- Temperature Monitoring: Overheating can compromise explosion-proof integrity.


Conclusion
The Explosion Proof Three Phase Asynchronous Motor is a vital component in hazardous industrial settings, combining safety, efficiency, and durability. Its ability to operate in explosive environments without igniting surrounding gases or dust makes it indispensable in industries like oil & gas, mining, and chemicals. By adhering to stringent safety standards and employing robust design features, these motors ensure reliable performance while protecting personnel and equipment.

For industries operating in hazardous locations, investing in high-quality explosion-proof motors is not just a regulatory requirement—it’s a critical safety measure.
