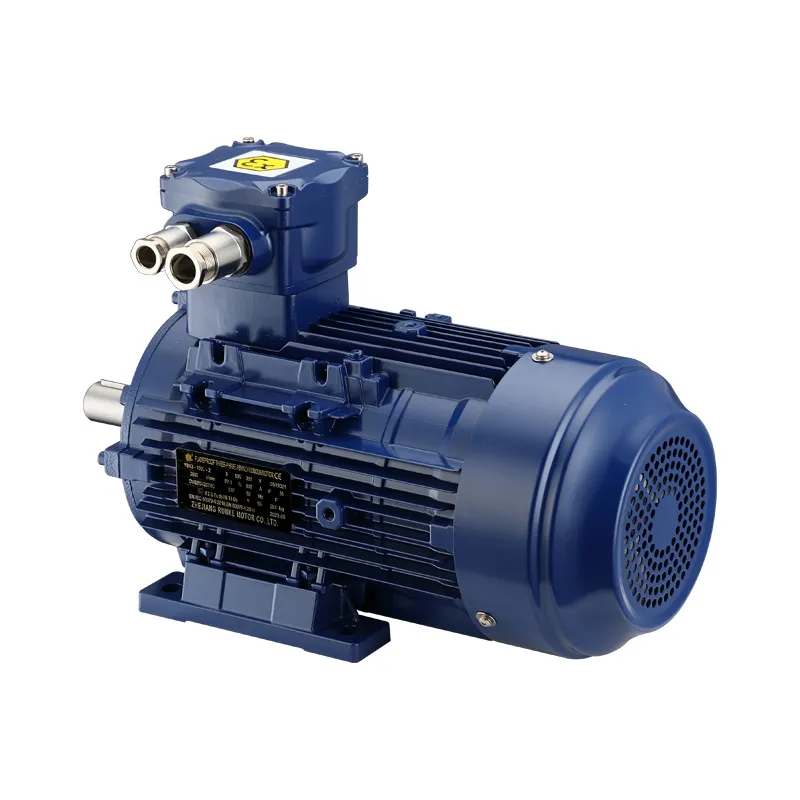

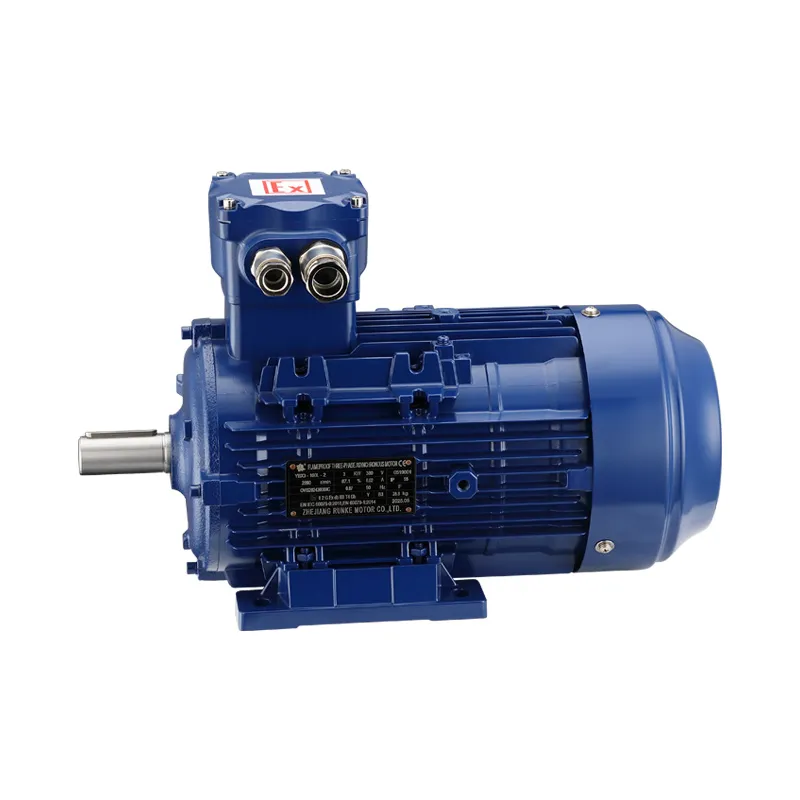

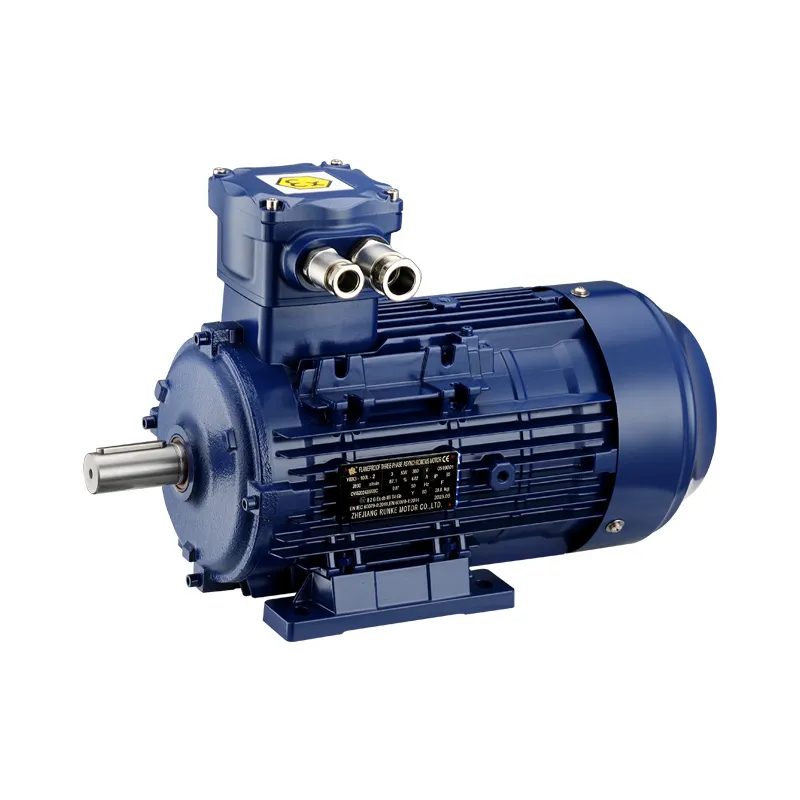

ATEX Compliant Three-Phase Induction Motors: Ensuring Safety in Hazardous Environments

Introduction
In industrial settings where explosive atmospheres may exist, safety is paramount. Equipment operating in such environments must adhere to stringent regulations to prevent ignition sources. One critical component in these applications is the ATEX-compliant Three-Phase Induction Motor. Designed to meet the European Union's ATEX Directive (2014/34/EU), these motors ensure reliable operation while minimizing risks in hazardous areas.

This article explores the features, design considerations, certifications, and applications of ATEX-compliant three-phase induction motors, emphasizing their role in safeguarding personnel and infrastructure.


1. Understanding ATEX Compliance
The ATEX Directive classifies equipment based on the level of explosion risk in the operating environment. For motors, compliance involves:
- Zone Classification: Motors are rated for specific zones (e.g., Zone 1, Zone 2 for gases; Zone 21, Zone 22 for dust).
- Temperature Class (T-Class): Limits surface temperatures to prevent ignition.
- Protection Methods: Such as Ex d (flameproof enclosure), Ex e (increased safety), or Ex p (pressurized enclosure).

ATEX-compliant motors undergo rigorous testing to ensure they meet these standards.


2. Design Features of ATEX Three-Phase Induction Motors
To achieve compliance, these motors incorporate specialized design elements:

2.1 Explosion-Proof Enclosures
- Constructed from robust materials (e.g., cast iron or aluminum) to contain internal explosions.
- Flanged joints and threaded fittings prevent flame propagation.

2.2 Temperature Control
- T-Class Ratings: Motors are designed to limit surface temperatures below the auto-ignition point of surrounding gases or dust (e.g., T3 ≤ 200°C).
- Thermal Protection: Embedded sensors or external devices monitor overheating.

2.3 Enhanced Sealing
- IP Ratings: High ingress protection (e.g., IP65) prevents dust or moisture from entering.
- Cable Glands: Certified for hazardous areas to maintain integrity.

2.4 Spark-Free Components
- Non-sparking fans, bearings, and brushes reduce ignition risks.
- Stainless steel or coated materials avoid static buildup.


3. Key Certifications and Standards
Beyond ATEX, motors may comply with:
- IECEx: International certification for explosive atmospheres.
- NEC/CEC (North America): Equivalent to ATEX under Class/Division systems.
- ISO 80079: Standards for explosive atmospheres.

Manufacturers must provide EC Type Examination Certificates and mark motors with Ex codes (e.g., II 2G Ex db IIC T4 Gb).


4. Applications in Hazardous Areas
ATEX three-phase induction motors are vital in industries such as:

4.1 Oil & Gas
- Drilling rigs, refineries, and pipelines where flammable gases (methane, propane) are present.

4.2 Chemical Processing
- Mixers, pumps, and compressors handling volatile substances.

4.3 Mining
- Underground operations with combustible dust (coal, sulfur).

4.4 Pharmaceuticals
- Facilities where fine powders or solvents pose explosion risks.


5. Selection Criteria for ATEX Motors
When choosing a motor, consider:
- Zone Classification: Match the motor’s Ex rating to the hazardous zone.
- Power & Efficiency: Balance performance with energy savings (e.g., IE3/IE4 standards).
- Environmental Factors: Corrosion resistance for offshore or chemical exposure.
- Maintenance Requirements: Easy access for inspections in compliance with ATEX guidelines.


6. Maintenance and Safety Practices
To ensure longevity and safety:
- Regular Inspections: Check seals, enclosures, and temperature ratings.
- Documentation: Maintain logs of certifications and repairs.
- Training: Personnel must understand ATEX protocols and emergency procedures.


7. Future Trends
Advancements include:
- Smart Motors: IoT-enabled sensors for real-time hazard monitoring.
- Lightweight Materials: Aluminum alloys reducing weight without compromising safety.
- Energy-Efficient Designs: Integrating ATEX compliance with sustainability goals.


Conclusion
ATEX-compliant three-phase induction motors are engineered to deliver performance without compromising safety in explosive environments. By adhering to strict standards, employing robust designs, and undergoing rigorous testing, these motors mitigate risks while powering critical industrial processes.

For industries operating in hazardous zones, investing in ATEX-certified motors is not just a regulatory requirement—it’s a commitment to protecting lives and assets.
