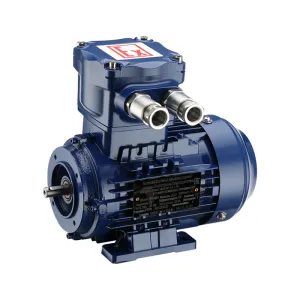

ATEX and IECEx Certified Motors for Global Markets: Ensuring Safety and Compliance in Hazardous Environments

In today’s industrial landscape, the demand for reliable and safe equipment in hazardous environments is paramount. Industries such as oil and gas, chemical processing, mining, and pharmaceuticals operate in areas where explosive atmospheres may exist. To mitigate risks, motors used in these environments must adhere to stringent international safety standards. Two of the most recognized certifications for explosion-proof motors are ATEX (derived from the French Atmosphères Explosives) and IECEx (International Electrotechnical Commission System for Certification to Standards Relating to Equipment for Explosive Atmospheres). Motors certified under these standards are designed to prevent ignition sources and ensure safe operation in volatile conditions, making them essential for global markets.

Understanding Hazardous Environments and the Need for Certified Motors

Hazardous areas are classified based on the presence of flammable gases, vapors, dust, or fibers that could ignite under specific conditions. These environments are categorized into zones (under ATEX and IEC standards) or divisions (under NEC in North America). For instance:

- Zone 0/1/2 (for gases, vapors, and mists)
- Zone 20/21/22 (for combustible dust)

Motors operating in these zones must be engineered to eliminate potential ignition sources, such as sparks or excessive heat. ATEX and IECEx certifications provide a framework for manufacturers to design motors that meet these rigorous safety requirements, ensuring compliance across different regions.

ATEX Certification: Compliance for the European Market

The ATEX Directive (2014/34/EU) is a mandatory regulation for equipment used in explosive atmospheres within the European Union. It applies to electrical and mechanical devices, including motors, and classifies them based on their intended zone of operation. Key aspects include:

1. Equipment Categories:
  - Category 1 (Zone 0/20): Highest level of protection, for continuous hazardous presence.
  - Category 2 (Zone 1/21): For areas where hazards are likely during normal operation.
  - Category 3 (Zone 2/22): For areas where hazards are rare and short-lived.

2. Essential Health and Safety Requirements (EHSR):
  Motors must incorporate protective measures such as flameproof enclosures (Ex d), increased safety (Ex e), or encapsulation (Ex m).

3. Marking and Documentation:
  ATEX-certified motors display the Ex logo, along with details like equipment group (II for gases, III for dust), temperature class (T1-T6), and protection type.

IECEx Certification: Global Acceptance and Harmonization

While ATEX is EU-centric, IECEx is an international certification system recognized in over 50 countries, including Australia, the Middle East, and Asia. It simplifies global trade by providing a unified standard (IEC 60079 series) for explosion-proof equipment. Key features include:

1. IECEx Scheme Components:
  - Ex Equipment Certification: Confirms compliance with IEC standards.
  - Ex Quality Assessment: Ensures manufacturing processes meet safety criteria.
  - Ex Personnel Competency: Certifies technicians working on Ex equipment.

2. Protection Methods:
  Similar to ATEX, IECEx motors use techniques like intrinsic safety (Ex i), non-sparking (Ex n), or pressurized enclosures (Ex p).

3. Global Market Advantage:
  IECEx certification reduces the need for multiple national approvals, streamlining export processes and reducing costs.

Design and Engineering of ATEX/IECEx Motors

To achieve certification, motors undergo rigorous design and testing:

1. Material Selection:
  Non-sparking materials (e.g., aluminum alloys) and corrosion-resistant coatings are used to prevent ignition.

2. Temperature Control:
  Motors must operate below the auto-ignition temperature of surrounding gases or dust. Thermal protection devices (e.g., PTC sensors) are often integrated.

3. Sealing and Enclosure:
  Explosion-proof housings contain internal explosions, while ingress protection (IP ratings) prevents dust or moisture entry.

4. Testing and Certification Process:
  - Type Testing: Prototypes are tested for spark prevention, thermal stability, and mechanical strength.
  - Quality Audits: Manufacturing facilities are audited to ensure consistency.

Benefits of ATEX and IECEx Certified Motors

1. Enhanced Safety:
  Reduces the risk of explosions, protecting personnel and infrastructure.

2. Regulatory Compliance:
  Meets legal requirements in the EU (ATEX) and international markets (IECEx).

3. Operational Reliability:
  Certified motors are built for durability in harsh conditions, minimizing downtime.

4. Market Flexibility:
  Dual certification (ATEX + IECEx) allows seamless entry into multiple regions.

Challenges and Considerations

Despite their advantages, certified motors require:
- Higher Initial Costs: Due to specialized materials and testing.
- Regular Maintenance: To ensure ongoing compliance and performance.
- Proper Installation: Only trained personnel should handle Ex equipment.

Conclusion

ATEX and IECEx certified motors are indispensable for industries operating in hazardous environments. By adhering to these standards, manufacturers demonstrate a commitment to safety, quality, and global compliance. Whether for offshore drilling rigs, chemical plants, or grain silos, these motors provide the reliability needed to safeguard operations worldwide. As regulations evolve and markets expand, the demand for certified explosion-proof motors will continue to grow, reinforcing their role as a cornerstone of industrial safety.
