Common Misconceptions About ATEX Motors Debunked

2025-10-20 14:22:03

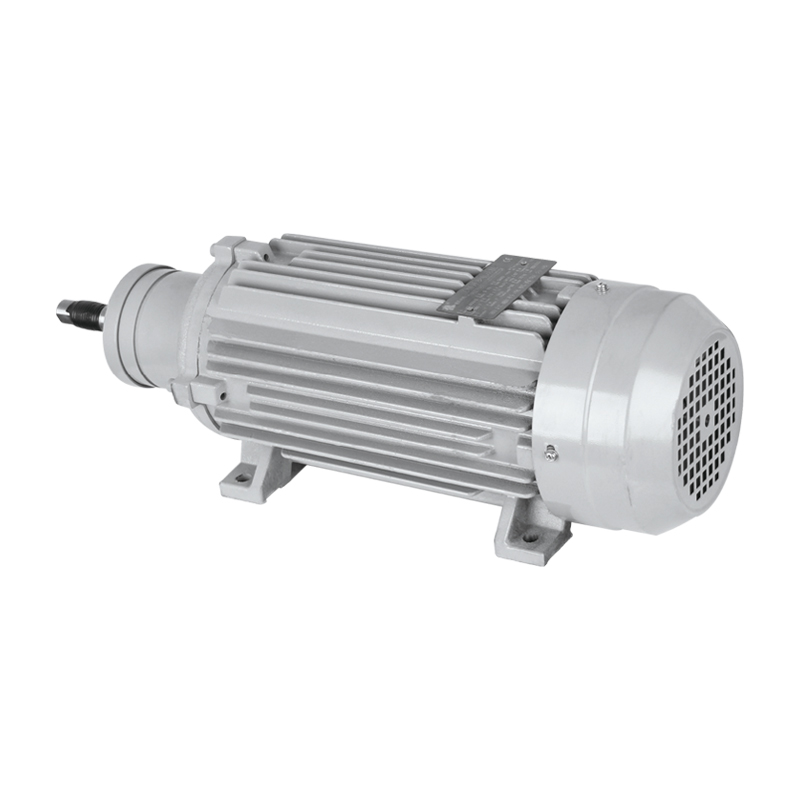

ATEX Motors are specialized electric Motors designed to operate safely in explosive atmospheres, where flammable gases, vapors, or dust may be present. These motors are certified under the ATEX directive (derived from the French "ATmosphères EXplosibles"), ensuring compliance with strict safety standards. Despite their critical role in hazardous environments, several misconceptions persist about ATEX motors, leading to confusion, improper usage, or even safety risks. This article debunks the most common myths and clarifies the facts.


Misconception 1: All Explosion-Proof Motors Are the Same
Reality: ATEX motors are not interchangeable with other explosion-proof motors.

Many assume that any motor labeled "explosion-proof" meets ATEX standards. However, ATEX certification is specific to the European Union and follows stringent guidelines (Directive 2014/34/EU). Other regions, like North America, use different standards (e.g., NEC/CEC or IECEx). While some motors may have dual certifications, not all explosion-proof motors comply with ATEX requirements. Always verify the certification marks and intended use before installation.


Misconception 2: ATEX Motors Are Only for Gaseous Environments
Reality: ATEX motors are designed for both gases and dust hazards.

A common belief is that ATEX motors only protect against explosive gases. In reality, they are categorized into two groups:
- Group I: For mining (methane/dust explosions).
- Group II: For other industries (flammable gases, vapors, or dust).

Each group has subcategories (e.g., IIA, IIB, IIC for gases; IIIA, IIIB, IIIC for dust). Selecting the wrong type can compromise safety. For example, a motor rated for gases may not prevent dust ingress, leading to ignition risks.


Misconception 3: ATEX Motors Are Overly Expensive and Unnecessary
Reality: The cost is justified by safety and compliance.

Some argue that standard motors with additional enclosures can replace ATEX motors to save costs. This is dangerous. ATEX motors undergo rigorous testing to ensure they don’t ignite explosive atmospheres, even under fault conditions (e.g., overheating or sparking). Non-certified motors lack these safeguards, risking catastrophic failures, fines, or legal liability. Investing in ATEX motors prevents far costlier accidents.


Misconception 4: ATEX Motors Can Be Installed Anywhere in Hazardous Areas
Reality: Proper zoning determines motor suitability.

Hazardous areas are classified into zones based on explosion risk frequency:
- Zone 0/20: Continuous hazard (requires highest protection, e.g., "ia" or "da" motors).
- Zone 1/21: Likely hazard (e.g., "ib" or "db" motors).
- Zone 2/22: Rare hazard (e.g., "ic" or "dc" motors).

Using a Zone 2 motor in Zone 1 is unsafe. Always match the motor’s protection level (Ex d, Ex e, Ex p, etc.) to the zone’s requirements.

Misconception 5: ATEX Motors Don’t Require Special Maintenance
Reality: They need stricter maintenance than standard motors.

ATEX motors must retain their explosion-proof integrity. Damaged cable glands, corroded enclosures, or improper repairs can void certification. Maintenance should:
- Follow the manufacturer’s guidelines.
- Use certified spare parts.
- Be performed by trained personnel.
Neglecting these steps can turn a safe motor into a hazard.


Misconception 6: Any Motor with an ATEX Label Is Safe
Reality: Counterfeit or misused motors exist.

Fraudulent ATEX labels or incorrect motor applications (e.g., using a low-temperature motor in high-heat environments) are risks. Always:
- Check the ATEX certificate number in the EU database.
- Verify the motor’s temperature class (T1-T6) matches the environment.
- Ensure the equipment category (1, 2, or 3) aligns with the zone.


Misconception 7: ATEX Motors Are Less Efficient
Reality: Modern ATEX motors match standard motor efficiency.

Early ATEX designs were bulkier and less efficient, but advancements like IE3/IE4 efficiency ratings now apply to ATEX motors. Features like advanced cooling or reduced surface temperatures maintain performance without compromising safety.


Misconception 8: ATEX Certification Is Permanent
Reality: Certification requires ongoing compliance.

Changes like modifications, repairs, or environmental shifts (e.g., new chemicals in the area) can invalidate ATEX status. Regular audits and re-certification checks are essential.


Conclusion
ATEX motors are vital for safety in explosive environments, but misconceptions can lead to misuse or accidents. Understanding their proper selection, installation, and maintenance ensures compliance and prevents hazards. Always consult ATEX directives and certified experts when in doubt.

By debunking these myths, industries can make informed decisions, prioritizing safety without compromising efficiency or cost-effectiveness.
