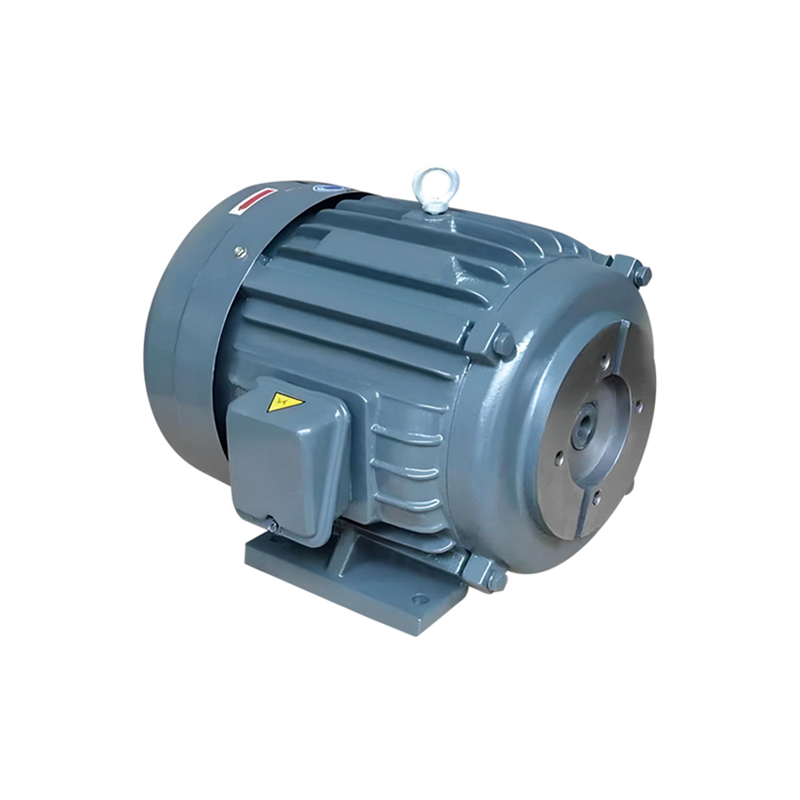

A Buyer's Guide to ATEX Electric Motors

2025-10-20 14:33:08

Introduction

When it comes to operating in hazardous environments where explosive gases, vapors, or dust may be present, safety is paramount. ATEX electric Motors are specifically designed to meet stringent safety standards, ensuring reliable performance in potentially explosive atmospheres. This guide will help you understand the key considerations when purchasing ATEX-certified Electric Motors, including compliance, classifications, and technical specifications.

Understanding ATEX Certification

ATEX stands for "Atmosphères Explosibles," a European directive (2014/34/EU) that governs equipment used in explosive environments. ATEX certification ensures that electric motors are designed to prevent ignition sources and operate safely in hazardous areas.

Key ATEX Directives:
- ATEX 114 (Equipment Directive 2014/34/EU) – Covers manufacturers' obligations for equipment used in explosive atmospheres.
- ATEX 153 (Workplace Directive 1999/92/EC) – Outlines employer responsibilities for worker safety in hazardous zones.

Hazardous Area Classifications

ATEX zones classify hazardous areas based on the likelihood and duration of explosive atmospheres:

Gas/Vapor Environments (Zones 0, 1, 2)
- Zone 0: Continuous presence of explosive gases (highest risk).
- Zone 1: Likely presence of explosive gases during normal operation.
- Zone 2: Rare presence of explosive gases, and only for short durations.

Dust Environments (Zones 20, 21, 22)
- Zone 20: Continuous explosive dust clouds.
- Zone 21: Likely presence of explosive dust during operation.
- Zone 22: Occasional dust presence under abnormal conditions.

ATEX Motor Categories

ATEX motors are categorized based on their suitability for different zones:

- Category 1 (1G/1D): Highest safety level, suitable for Zones 0/20.
- Category 2 (2G/2D): Suitable for Zones 1/21.
- Category 3 (3G/3D): Suitable for Zones 2/22.

Key Features of ATEX Electric Motors

1. Explosion-Proof Enclosure
ATEX motors are built with robust enclosures that contain any internal explosion, preventing it from igniting the surrounding atmosphere.

2. Temperature Classification (T-Class)
Motors are rated based on maximum surface temperature to prevent ignition:
- T1 (≤450°C)
- T2 (≤300°C)
- T3 (≤200°C)
- T4 (≤135°C)
- T5 (≤100°C)
- T6 (≤85°C)

3. Protection Methods
Different protection techniques are used depending on the application:
- Flameproof (Ex d): Contains explosions within the motor.
- Increased Safety (Ex e): Prevents sparks and overheating.
- Non-Sparking (Ex nA): Minimizes ignition risks.
- Encapsulation (Ex m): Seals components to prevent contact with explosive atmospheres.

4. Material Construction
- Cast iron or aluminum housings for durability.
- Stainless steel components for corrosion resistance in harsh environments.

Selecting the Right ATEX Motor

1. Determine the Hazardous Zone
Identify whether the motor will operate in gas (Zones 0-2) or dust (Zones 20-22) environments.

2. Check Certification Compliance
Ensure the motor meets ATEX 2014/34/EU and relevant IECEx or NEC (for North America) standards.

3. Power and Efficiency Requirements
- Power rating (kW/HP) – Match motor output to application needs.
- Energy efficiency (IE3/IE4) – Higher efficiency reduces operational costs.

4. Environmental Conditions
- Ambient temperature – Some motors are rated for extreme heat or cold.
- Humidity and corrosion resistance – Important for offshore or chemical industries.

5. Maintenance and Serviceability
- Ease of access for inspections and repairs.
- Availability of spare parts to minimize downtime.

Common Applications of ATEX Motors

- Oil & Gas: Pumps, compressors, and drilling equipment.
- Chemical Processing: Mixers, agitators, and conveyor systems.
- Pharmaceuticals: Dust-handling equipment in powder processing.
- Mining: Ventilation fans and material transport systems.

Conclusion

Choosing the right ATEX electric motor requires careful consideration of hazardous zone classifications, protection methods, and operational requirements. By understanding ATEX directives and selecting motors with appropriate certifications, businesses can ensure safety, compliance, and long-term reliability in explosive environments. Always consult with experts to confirm the best motor for your specific application.
